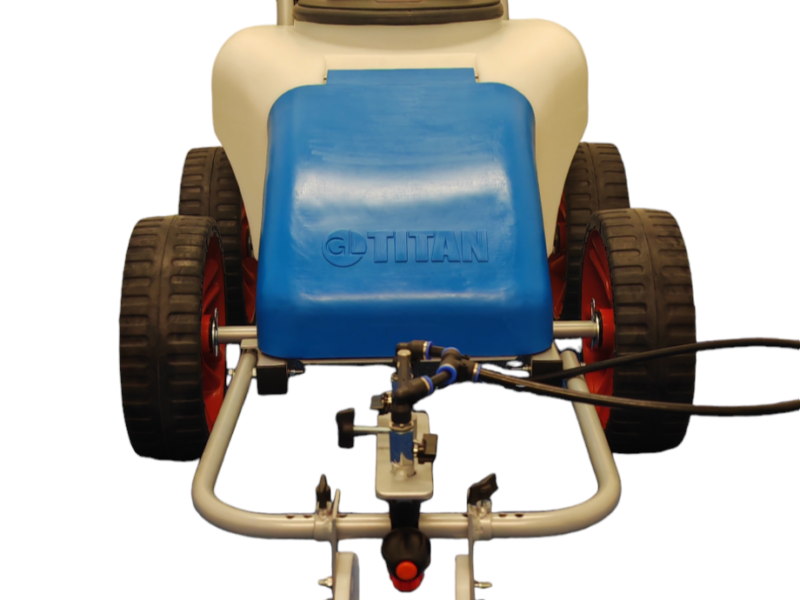

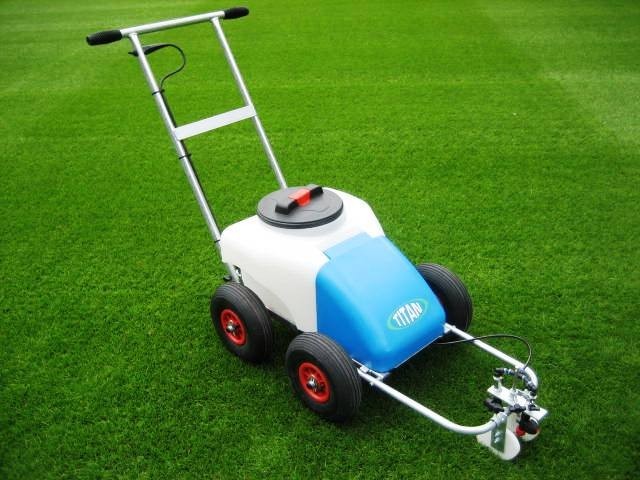

The TITAN spray line marker has been developed in consultation with professional groundsmen. The result is a hand built, well balanced and robust, high specification spray marker that combines all the needs of the professional groundsman into a single machine and offers exceptional value for money.

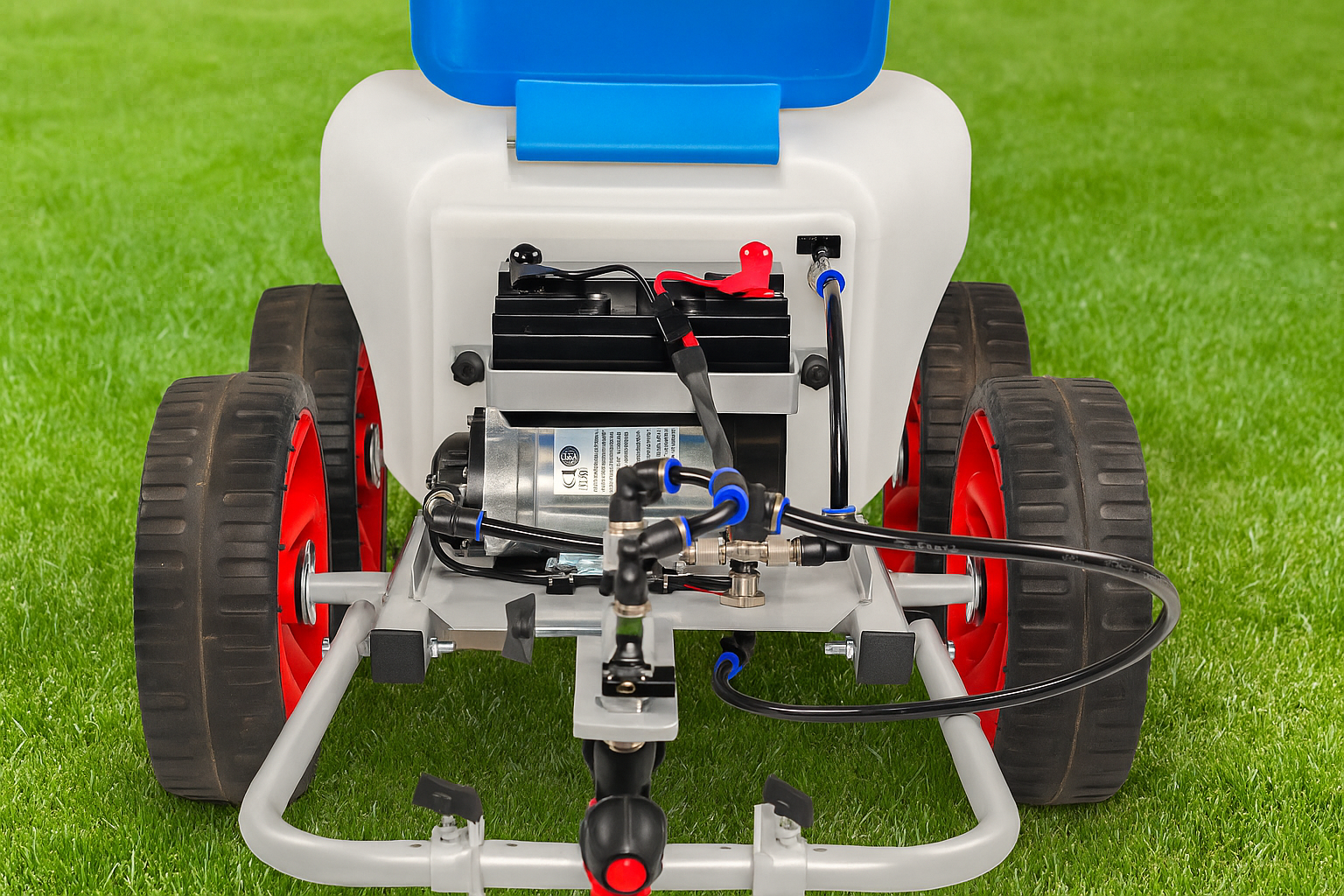

Whether its single or multi-pitch line marking, the TITAN will deliver a smooth, constant and even spray line marking performance. The battery has a long powerful life and will drive the pump for a full days marking from a single charge. The battery can be charged whilst in position or can be lifted out for charging away from the marker. An automatic battery charger is supplied as standard.

The pump is both efficient and economical and when used in conjunction with the variable pressure valve, enables the groundsman to control the volume of paint delivered to the twin spray heads for a dense professional line or a more economical line.

The Grassline TITAN offers a variable line width of 50mm, 75mm or 100mm (2, 3 and 4 inch).

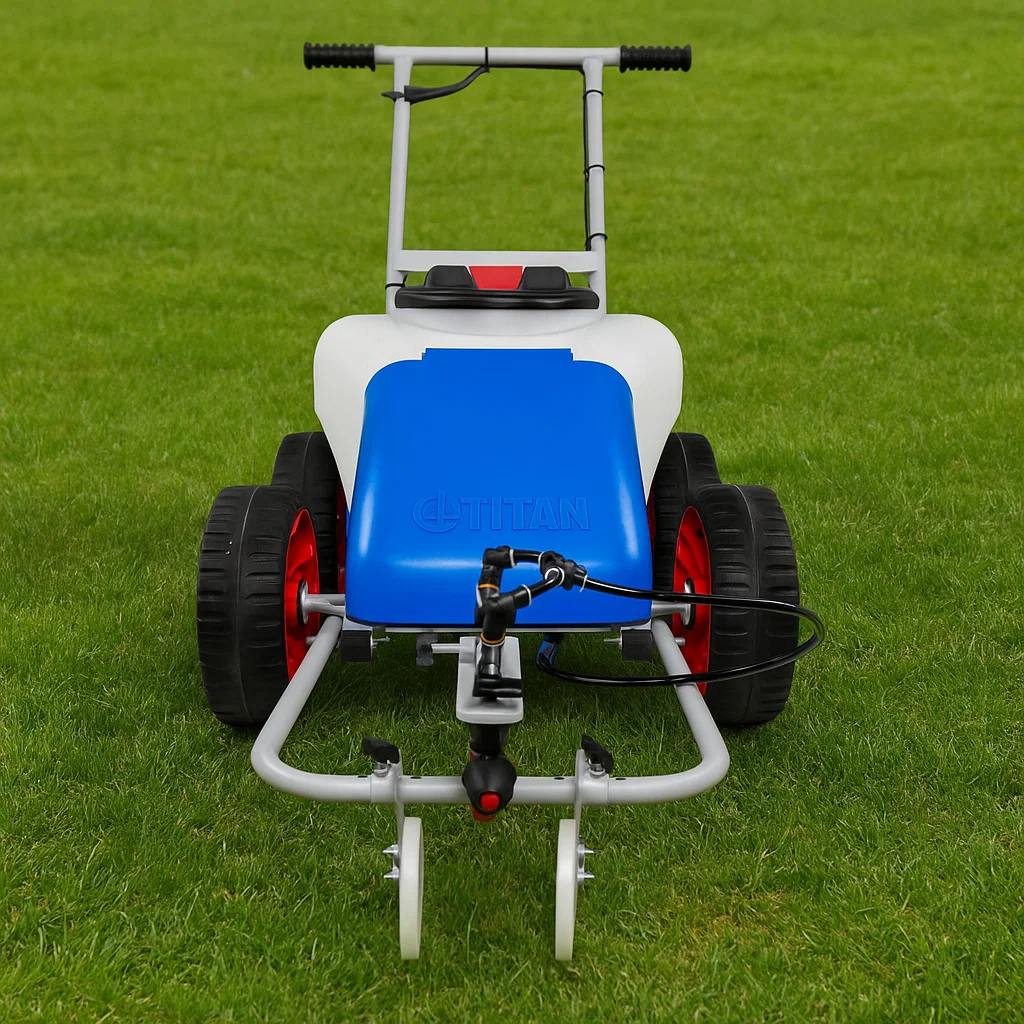

Twin Spray Heads You can choose to use a single spray delivery for economical /normal line marking or both sprays for a double spray delivery but in a single pass.

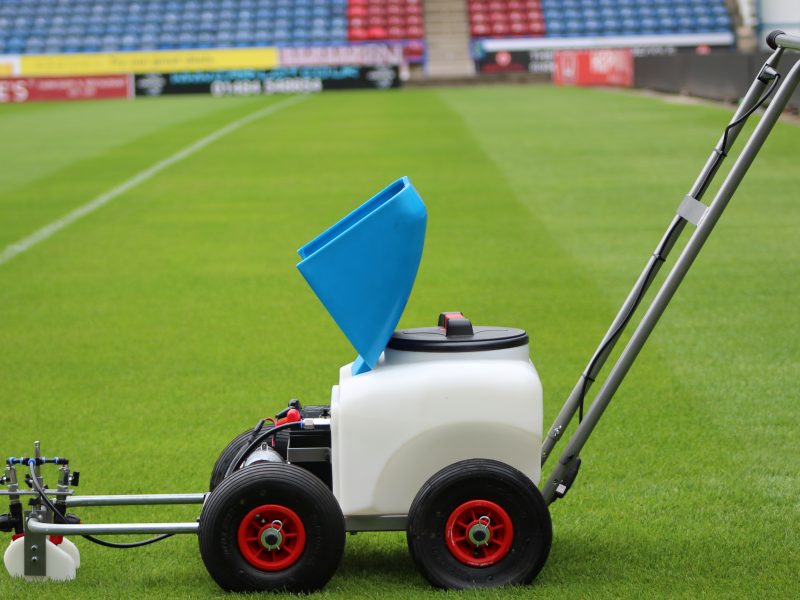

Integral Mixing System The TITAN’s tank holds 30 litres of mixed marking paint and has an integral mixing system as standard. The paint concentrate should be thoroughly mixed/diluted with water in a suitable container and then poured into the tank.
DO NOT MIX THE PAINT CONCENTRATE WITH WATER IN THE TITAN’S TANK. After the mixed paint has been poured into the tank, the Integrated Mixing System can be activated to continue the mixing process before spraying commences and during breaks in spraying. The system is activated by use of the pressure valve located under the hood which opens/closes the system. When activated, the paint will by pass the spray heads and flow back into the tank. The pressure valve can also be used to regulate the pump pressure and consequently the volume of paint being delivered to the spray heads. This reduced pressure enables the Titan to be used for marking hard sports surfaces, tarmac, concrete, car parks, playgrounds etc where a lesser volume of paint is needed to mark non porous surfaces.

Other features supplied as standard:- Galvanised adjustable handle. Pneumatic tyres and roller bearing wheels. Heavy duty battery. Compatible battery charger. 115mm (4 and 1/4 inch) filling filter. Tank with flexible pipe and in-line weighted filter. Stainless steel spray heads with in line anti dribble valves and removable nozzles. Steel adjustable thumb screws.

Plus 1 free bottle of Titan Power Clean cleaning concentrate.
